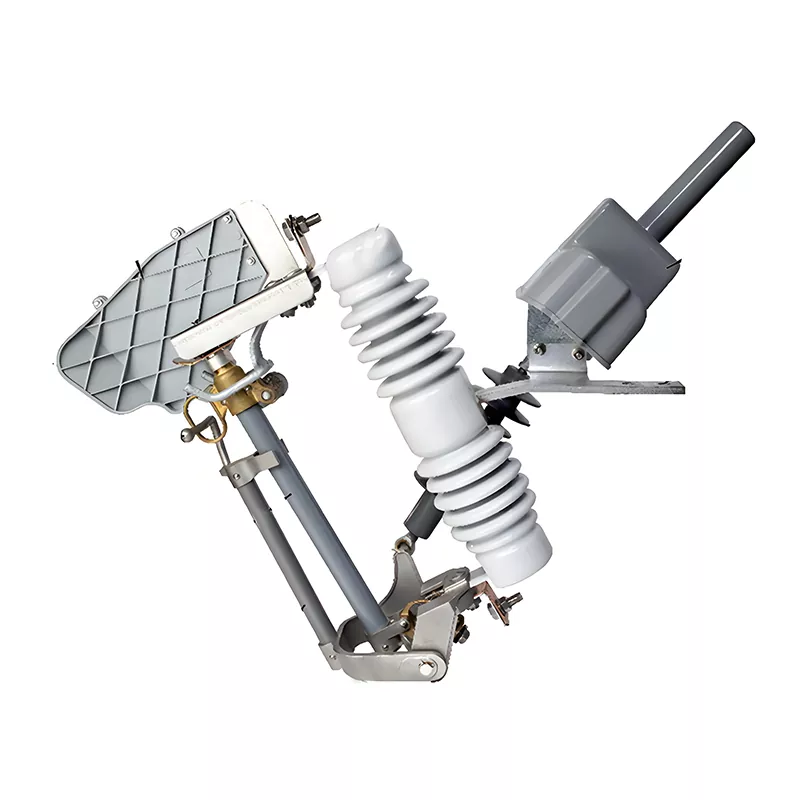

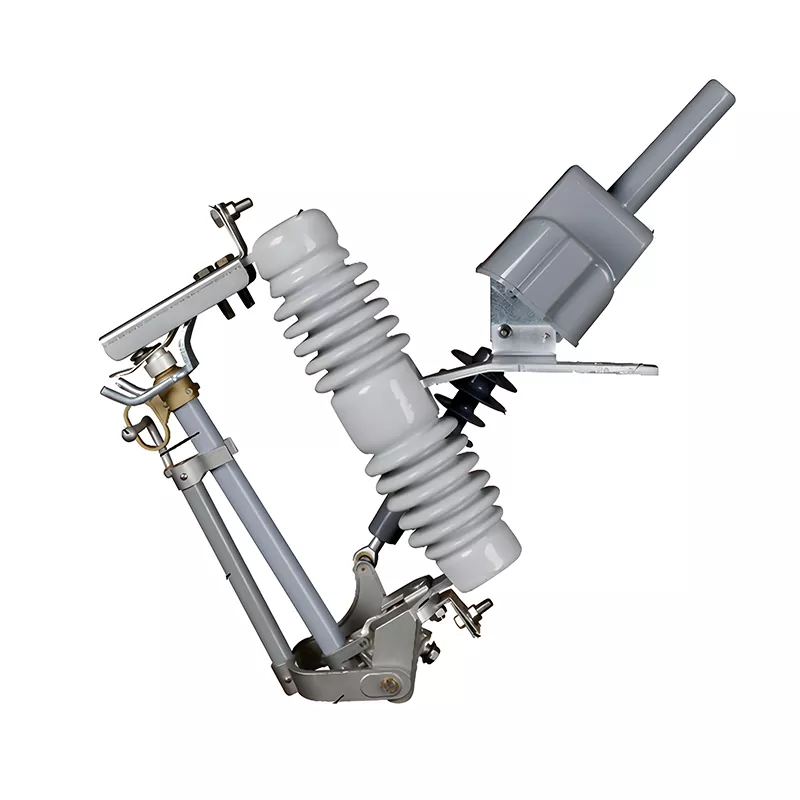

The Huajidian Electric Drop-out Fuse is an outdoor overcurrent protection device designed for overhead distribution lines operating at 6kV to 33kV. Featuring a high-insulation polymer or porcelain housing and an automatic drop-out fault indication mechanism, the fuse complies with international IEC standards and provides reliable protection for power distribution networks.
As a professional electrical equipment supplier, Huajidian sources its drop-out fuses from a certified manufacturing facility in Yueqing, China. Every product undergoes comprehensive factory acceptance testing (FAT) and is supplied with complete certification documentation and global after-sales support. The product is widely used by utility companies, EPC contractors, and power distribution projects across Southeast Asia, the Middle East, Africa, and North America.
The fuse tube utilizes an efficient gas-generated arc extinguishing system that interrupts fault currents within approximately 0.2 seconds. Rapid fault isolation minimizes damage to downstream electrical equipment and improves overall system reliability.
The automatic gravity-operated drop-out mechanism creates a clearly visible open circuit after fuse operation, allowing maintenance personnel to quickly identify fault locations while improving operational safety during inspection and maintenance.
Manufactured with corrosion-resistant metal components and high-performance insulating materials, the fuse operates reliably in temperatures ranging from -30°C to +60°C. Optional silicone-coated polymer insulators provide excellent resistance to pollution, UV exposure, humidity, and coastal salt spray conditions.
Multiple fuse current ratings are available to match transformers of different capacities. Huajidian also provides customized bracket dimensions, mounting configurations, and OEM manufacturing services to meet specific project requirements.
Every Electric Drop-out Fuse is manufactured under a comprehensive quality management system that includes incoming material inspection (IQC), in-process quality control (IPQC), and full-function Factory Acceptance Testing (FAT) before shipment, ensuring consistent product quality and long-term reliability.
Huajidian Electric Drop-out Fuses are widely used for:
A: Yes. Polymer insulators with silicone rubber anti-pollution coatings are specifically designed for coastal environments with high humidity and salt spray, while porcelain insulators are available for inland and dry-climate applications. All metal fittings are hot-dip galvanized to provide excellent corrosion resistance and long service life.
A: Huajidian provides complete IEC 60265 type test reports, CE certification, and comprehensive export documentation. The company also supports customers with Saudi SABER registration, Indonesian SNI certification assistance, sample testing, and complete customs clearance documentation before shipment.
A: Huajidian Electric Drop-out Fuses are backed by a 5-year global warranty. A full range of replacement fuse links is kept in stock, and complimentary spare fuses can be supplied according to order quantity, ensuring fast on-site maintenance and reduced equipment downtime.
Sistem Kuasa 40.5kV, 200A
Pensijilan IEC 62271-200, IEC 694, GB3906, DIN VDE 0670
Sistem Kuasa 12kV 、100A/200A
Pensijilan IEC 62271-200, IEC 694, GB3906, DIN VDE 0670
Sistem Kuasa 12kV, 100A
Pensijilan IEC 62271-200, IEC 694, GB3906, DIN VDE 0670
Sistem Kuasa 12kV, 100A/200A
Pensijilan IEC 62271-200, IEC 694, GB3906, DIN VDE 0670
